For a purchased assembled robot: continue with App or web configuration below. For an electronics kit, first complete electronics testing, structural assembly and upright initialization.
Before you begin
This page takes an assembled RIG-Hover from power-on to its first conversation. Keep it open while you connect and configure your robot; the connection instructions and common fixes are included below.
Have the robot, its supplied charging equipment, a phone with Bluetooth and a 2.4 GHz Wi-Fi password ready. This guide uses international firmware, the RIG app and the international dashboard.
1. Charge and check
Charge through the supplied charging interface. With power off, check cables, the power switch and clearance around moving parts. Place the robot on a clear, level surface away from edges. An assembled robot normally has firmware installed; routine first use does not require reflashing.
2. Switch on and read the result
Place Hover upright on a level surface and support its body while it starts. Allow the IMU and balance control to initialize. Release it only after stable balancing torque is established. Support it again during a restart, including a restart after provisioning.
| Startup result | Your next action |
|---|---|
| QR code or provisioning prompt | Continue to step 3 below. |
| Normal standby and already online | Keep the existing connection; proceed to step 4. |
| Calibration indication | Open the calibration instructions below, finish alignment and save before continuing. |
| No display or repeated reboot | Use the troubleshooting table at the end of this page. |
Calibration is shown — what should I do?
The head servo uses ID 3. Match the left and right wheel connections to the board and the supplied assembly drawing. The assembly labels and firmware motor addresses are different conventions; do not reprogram motor IDs by guessing from a physical label.
Let the head servo return to its neutral position before fitting the horn. Keep screen and camera ribbons clear of the head joint. Fit only the specified motor screw lengths, and keep both wheels clear of cables.
For the first balance check, hold the body upright on a level surface, switch on and keep it steady during IMU initialization (the published guide suggests about 2–3 seconds). Release it gradually only when balancing torque is established. If it falls or runs away, support it and switch off before checking assembly. Repeat the supported start after provisioning or any restart.
For a newly assembled kit, use the calibration drawing supplied for your hardware revision. A correctly assembled and calibrated robot does not need to be taken apart for setup.
3. Connect and activate
- Enable Bluetooth on your phone and allow the RIG app to discover nearby devices. Some Android versions also request location permission for Bluetooth discovery.
- Use the international app entry shown by the robot's provisioning screen. Open Add Device and select your RIG-Hover; compare the device identifier if several robots are nearby.

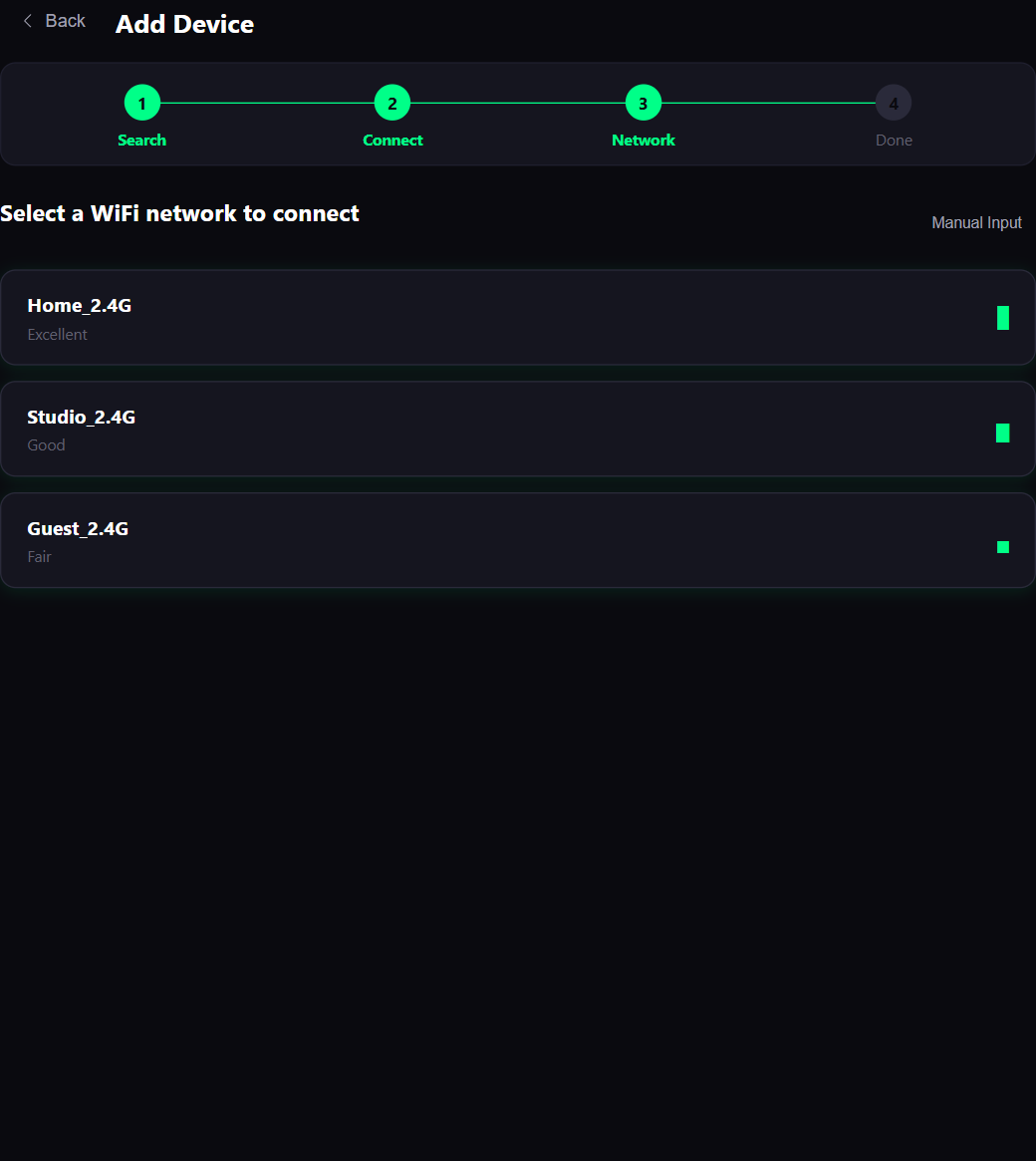

- Select your 2.4 GHz Wi-Fi network and enter its password. A 5 GHz-only network will not work. If the interface allows manual network entry, type the exact network name when it is missing from the list.

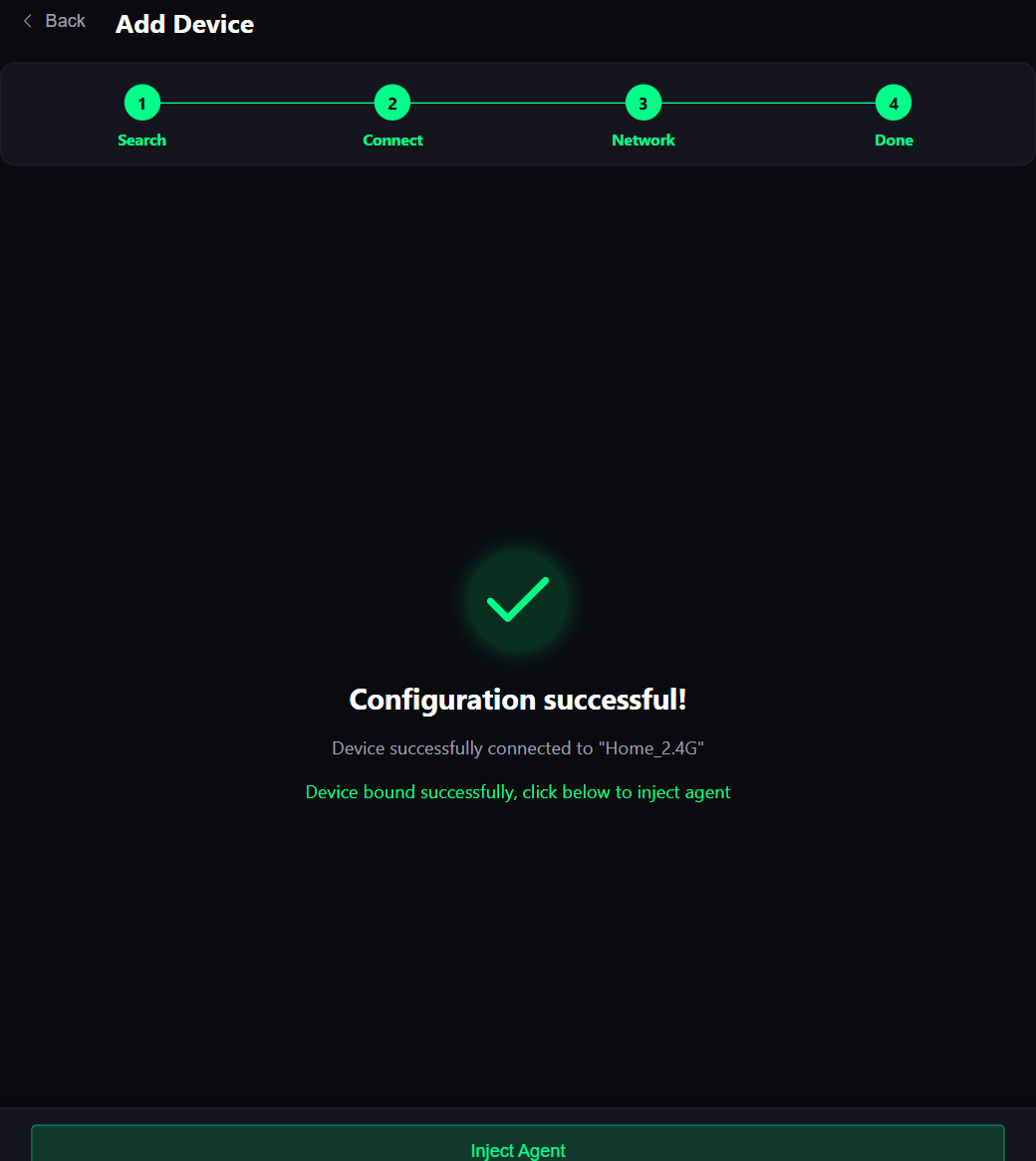

- Wait for the success message. Finish the account binding or activation offered by the app; sending a Wi-Fi password alone does not complete device setup.
- Follow the restart prompt and wait for the device to return online. Keep Hover supported throughout this restart because balancing stops temporarily.
- Check that the correct device appears in your account before trying voice interaction.

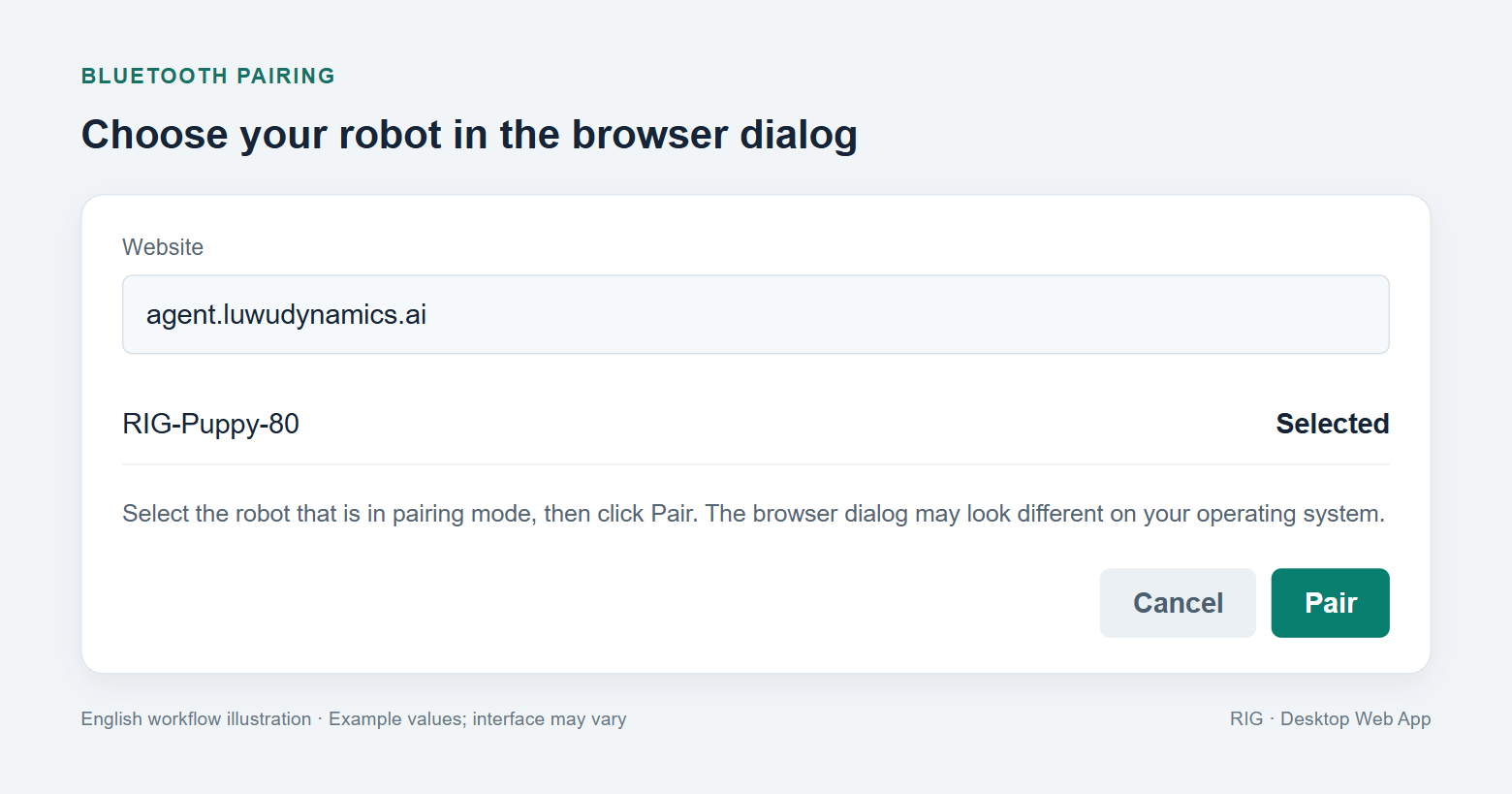

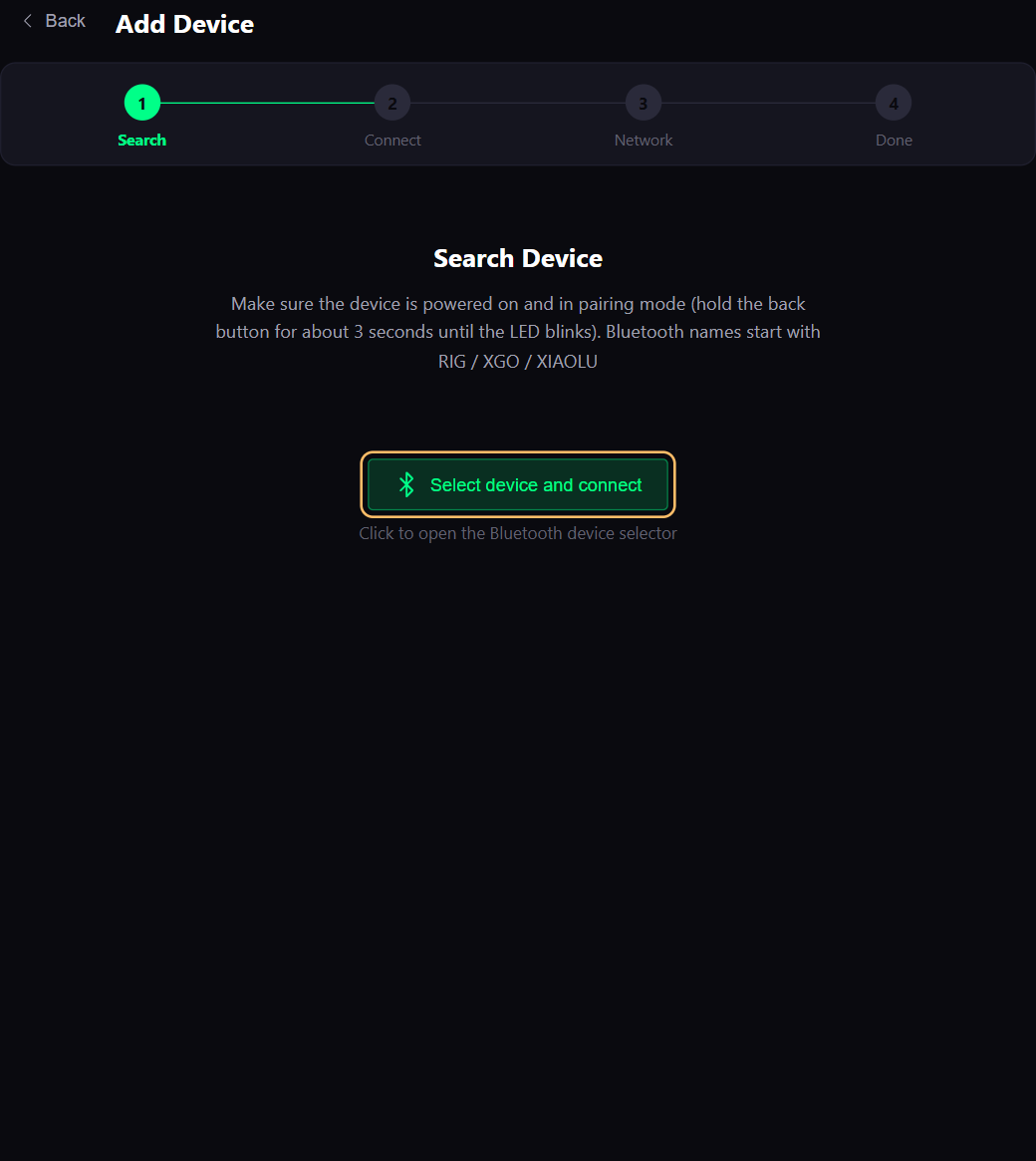

Using a computer instead? Open the international dashboard. If it offers Add Device → Search device and connect, allow Bluetooth access, choose your robot, then submit the 2.4 GHz network and password. The screenshots below show this published browser flow. If Bluetooth pairing is unavailable in your browser, use the RIG app.
4. Choose your agent and language

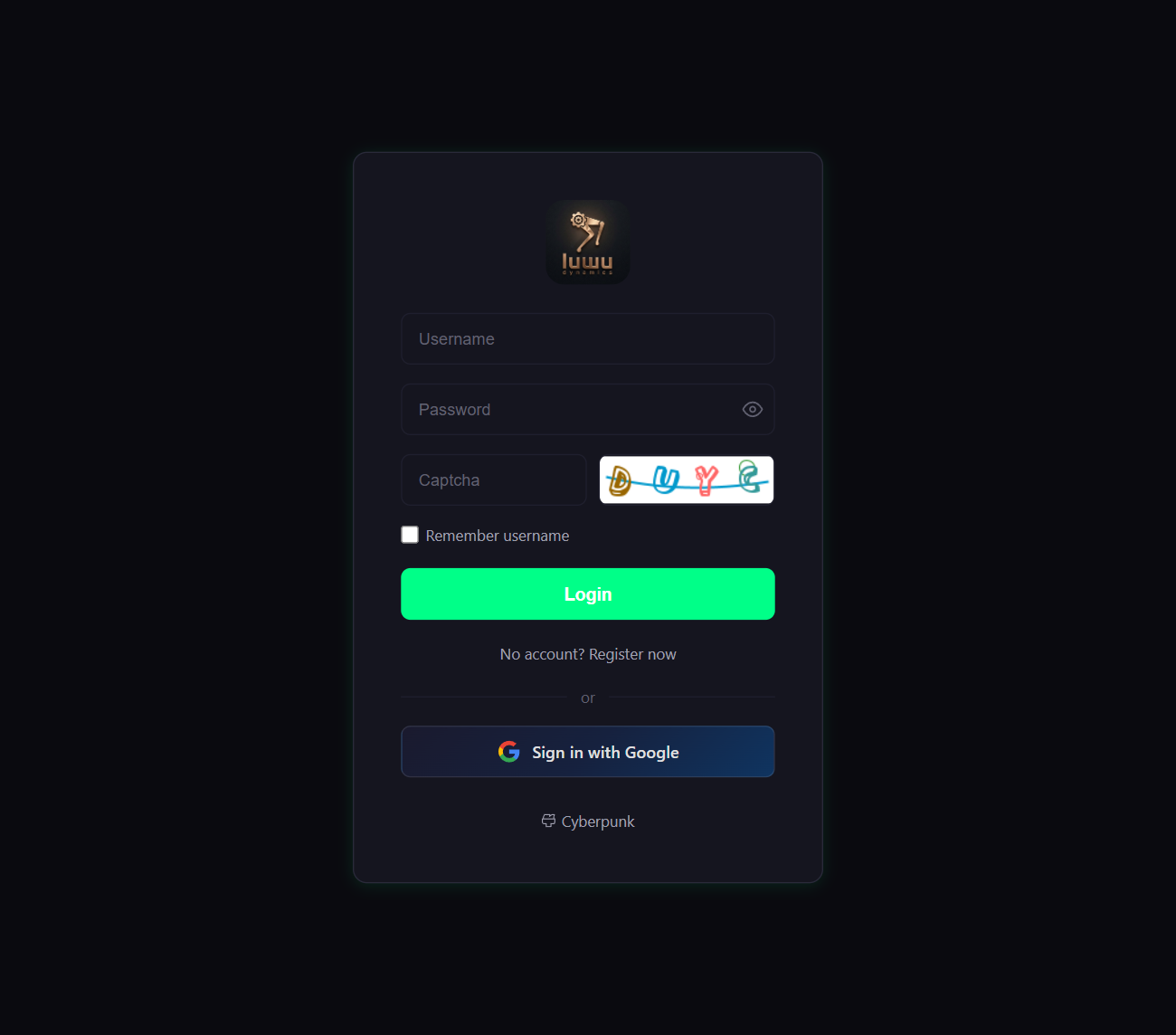

- Open the international RIG dashboard and sign in with the account used to bind your robot.
- Select your device in the device list. If it is missing, finish binding in the RIG app before changing agent settings.

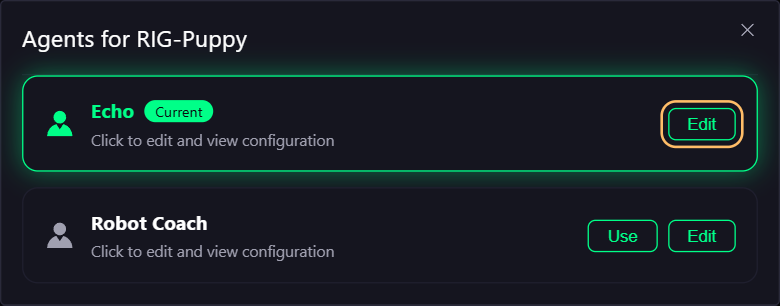

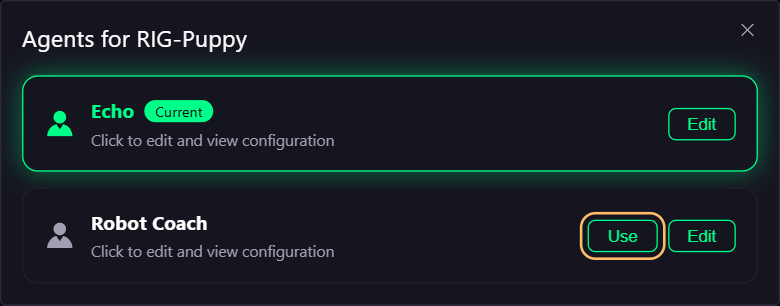

- Open the device's agent settings. Select an available agent, or edit its role description. Save the configuration and apply the agent to this device.

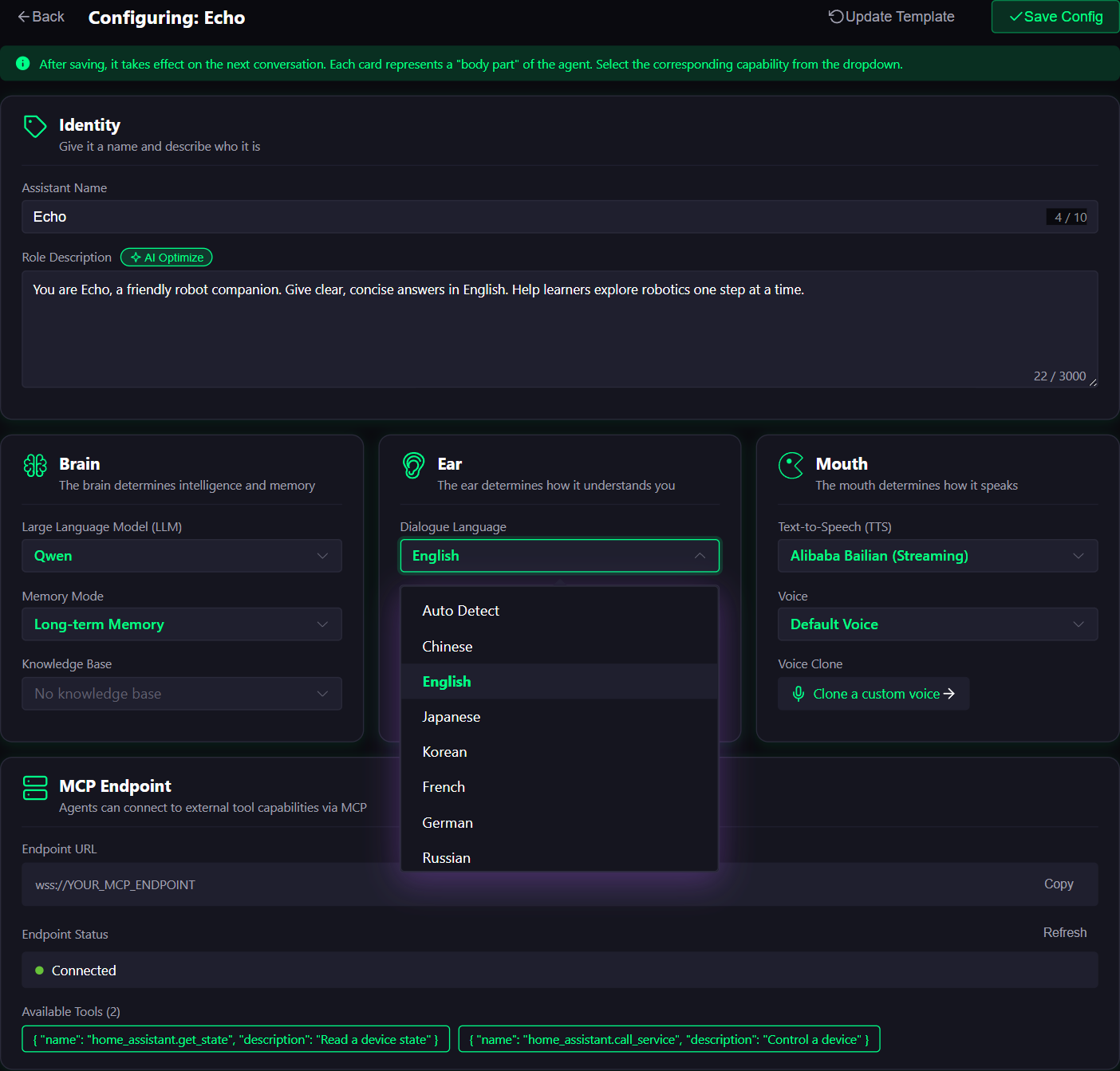

- Select the conversation language in the audio settings and save. Available voices and features depend on the international service.
- Restart only if the interface asks you to, then start a new conversation to check the change. Changing an agent's name does not change the local wake word.
Show international dashboard screenshots
5. Your first conversation
Say “Hey Kira” and wait for the listening indication, then ask “Tell me a short joke.” Wait for the reply before speaking again. Wake-word recognition is local; the conversation requires a working network and active cloud connection.
Watch the listening, thinking and speaking feedback on the screen. If the robot hears the wake word but never answers, check activation and the selected agent before changing hardware.
Ready to continue: your device is online in the correct account, your selected agent is applied, and one conversation succeeds. The next stage below introduces short movements and everyday controls.
Fix a problem without leaving this page
| What you see | What to do here |
|---|---|
| Robot does not appear in discovery | Keep it near the phone, check Bluetooth permissions and the provisioning screen, and disconnect another phone that may already be connected. |
| Wi-Fi connection fails | Check the exact network name and password, use 2.4 GHz and move closer to the router. Retry pairing before considering a reset. |
| Online, but no conversation | Complete activation, select and apply an agent to this device, and check its conversation language. Wait for listening before speaking. |
| No response to the wake word | Use Hey Kira for the reviewed international firmware; check that the robot is awake and not in calibration or remote-control mode. |
| Restarts when movement begins | Stop testing, charge the battery and inspect power connections with power disconnected. Repeated resets under load need investigation before another movement. |
| Screen stays dark | Check power and sleep state first; a never-flashed kit may need firmware. With power disconnected, inspect the display cable against this model's diagram. |
| Falls or wheels accelerate unexpectedly | Support the body, switch off, then check wheel orientation, connections and obstructions. Repeat upright initialization; do not start by changing balance gains. |
